ALL RIMLOX INSTALLATIONS MUST BE REGISTERED WITHIN 24HRS AFTER INSTALLING.
INSTALLATION---dealership & self

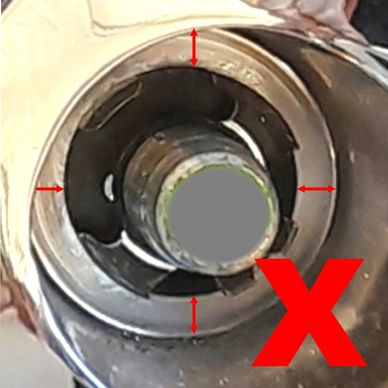

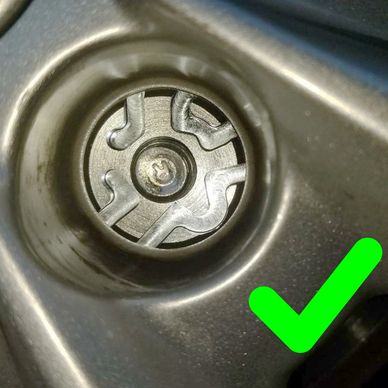

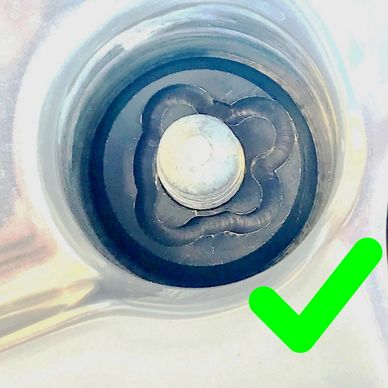

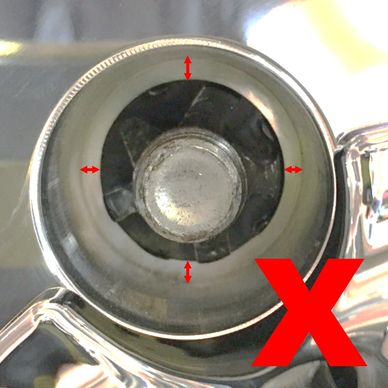

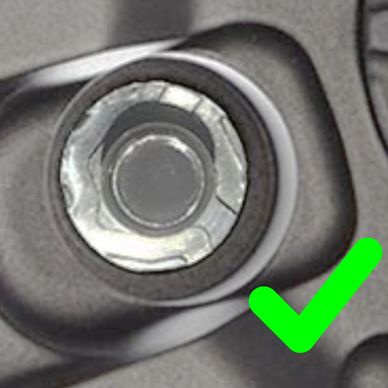

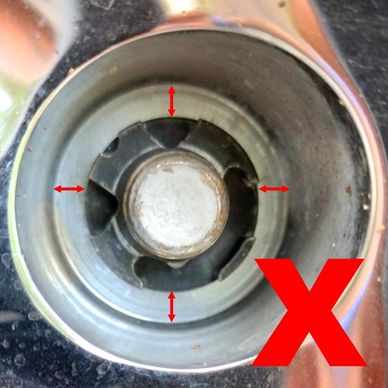

not properly installed vs properly installed
CENTER CAPS VS EXPOSED LUG NUTS---THE DIFFERENCE

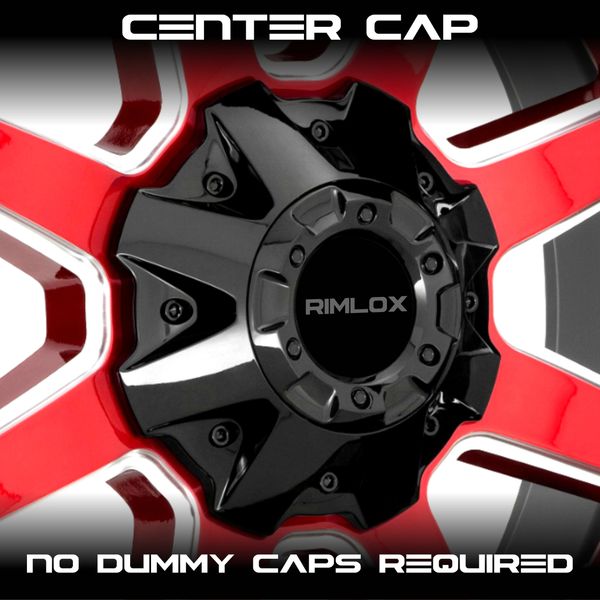

CENTER CAP
Center cap(s) cover all lug nuts limiting rusting end
exposure to the elements.
(Dummy caps NOT required)

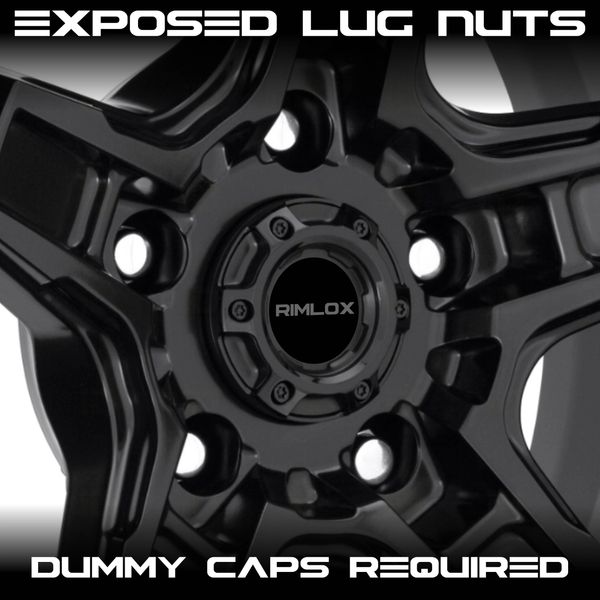

EXPOSED LUG NUTS
Exposed to rain, water, snow etc. Contributes to rust.
(Dummy caps required)
INSTALLATION VERIFICATION
Upon installing all Rimlox wheel locks, the installer MUST verify the fitment of the wheel lock inside the hole of the wheel. If the wheel lock has more than an 1/8" gap between the wheel lock and the hole of the wheel, the installation will automatically be deemed VOID. A new bigger set of locks will be ordered and manufactured swapped out to fill the entire inner-diameter of the hole of the wheel gap.

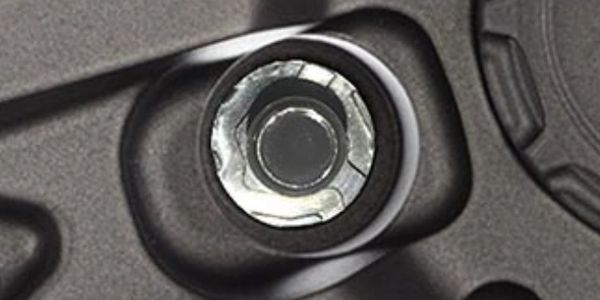

No installations will be approved if there is enough room around the lock for a tool or socket to potentially be slammed onto to remove the lock(s). Once the Rimlox wheel locks have been installed and registered showing no substantial gap between the lock and hole of the wheel, the installation will be deemed VALID. All installations are verified to ensure lock install and fitment.
OPTION 1: dealer installation directions
DEALER / INSTALLER
The 100% Guarantee is only VALID when the Rimlox wheel locks have been installed by a dealership or 3rd party wheel and tire ship of the customer's choice. The wheel locks MUST be registered within 24hrs AFTER the Rimlox wheel locks have been installed. NOTE: Although optional and extra... Dummy caps MUST also be installed to have the Rimlox 100% guarantee, if no center cap is present covering the threads
Installation steps
1. Open red label baggie containing 4 locks and 1 installation key
2. Connect wheel lock and key together
3. Hand tighten onto wheel lug nut stud
4. Tighten until lock rests into back of wheel hole.
5. Repeat step 4 for remaining locks

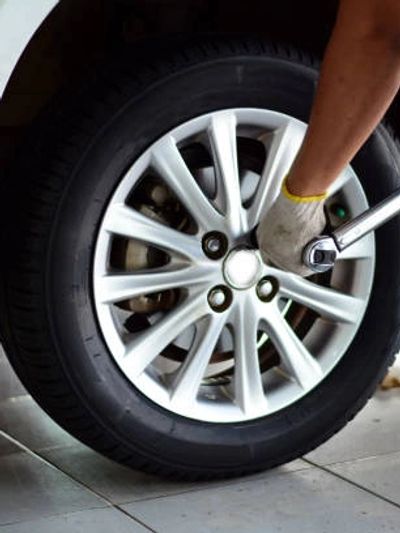

6. Torque all Rimlox wheel locks to OEM/ factory torque specs.
7. Give customer used installation key after installing the Rimlox wheel locks.
8. Notify customer MUST ship installation key and register within 24hrs AFTER the Rimlox wheel locks have been installed
9. OPTIONAL: Register customer wheel locks. REGISTRATION
10. Give customer the 2 part key (black label baggie)
OPTION 2: customer installation directions
SELF / CUSTOMER INSTALLATION DIRECTIONS
The SELF installation allows the customer to install his or her own Rimlox wheel locks, however this installation will AUTOMATICALLY VOID the 100% Rimlox guarantee whereas the installation nor the torque applied cannot be verified or confirmed. NOTE: Although optional and extra... Dummy caps MUST also be installed to have the Rimlox 100% guarantee, if no center cap is present covering the threads
1. No dealership or wheel and tire shop required
2. Open red label baggie containing 4 locks and 1 installation key
3. Connect wheel lock and key together
4. Hand tighten 1 lug nut per wheel onto wheel lug nut stud
5. Tighten until lock rests into back of wheel hole
6. Repeat step 4 for remaining locks, after all locks are installed
7. Torque all 4 Rimlox wheel locks to OEM/ factory torque specs
8. Register customer wheel locks with 24hrs after locks are installed. REGISTRATION
9. Keep both keys Customer install will automatically VOID The Rimlox 100% guarantee
10. Keep 1 piece install key in the house or garage. do not keep install key in vehicle.
$375 LATE REGISTRATION FEE
- ALL RIMLOX INSTALLATIONS MUST BE REGISTERED WITHIN 24HRS AFTER
- FAILURE TO REGISTER WILL RESULT IN AN AUTOMATIC LATE REGISTRATION FEE
- MUST BE REGISTERED BEFORE 100% GUARANTEE IS GRANTED
DEALERSHIP / 3RD PARTY / CUSTOMER INSTALLations cont'd
1. Your locks will be shipped directly to you, the dealer or the address you have provided. You will then take them to a Dealership or a 3rd party wheel and tire shop to have them installed. You may also install the wheel locks yourself however, you do not receive the Rimlox 100% . When installing the Rimlox wheel locks, the Dealership, 3rd party wheel and tire shop or the customer, will remove one (1) lug nut or bolt from each wheel and install the Rimlox wheel lock(s) one (1) on each wheel. The installer will remove and connect the wheel lock with the installation key (one-piece).
2. Once the wheel lock and installation key are connected, the installer will hand-tighten the wheel lock onto the wheel stud thread(s) until it is snug into the back of the hole of the wheel With the wheel lock(s) firmly seated in the back of the hole of the wheel, the installer will then torque all four (4) of the RImlox wheel locks to the FACTORY/ OEM torque requirements. NOTE: FAILURE TO ENTER/PROVIDE CORRECT OEM TORQUE WILL RESULT THE REGISTRATION TO BE DEEMED AUTOMATICALL VOID
3. Once all Rimlox wheel locks have successfully installed, the installer must give the INSTALLATION KEY back to the customer to have it shipped back to Rimlox to have the installation key sealed where it will then be returned to the customer. NOTE: IT IS THE ULTIMATE RESPONSIBILITY OF THE CUSTOMER TO REGISTER THIER WHEEL LOCKS WITHIN THE 24HR TIME FRAME AND SHIP THE INSTALLATION KEY BACK TO RIMLOX TO HAVE IT SEALED. (The dealer/installer may assist the customer if assistance is needed,)

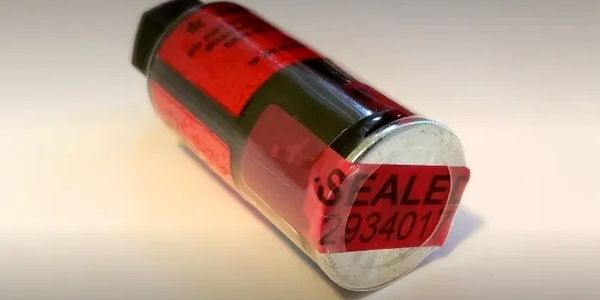

4. The heat-shrink sealing of the key is a security measure set in place to protect both parties to ensure no key(s) were used to remove the wheels and tires in the unfortunate event that their wheels and tires are stolen.
NOTE: All keys must be sealed prior to any and all wheel theft claims are to be filed. Failure to have key sealed will automatically VOID any and all wheel theft guarantees, warranties and or claims.
